Model: 934190 |
|
|
11
pin base (included)
.
|
|
Description:
Timer: 0.1
Sec. to 9990 hrs; Solid State;
ON-Delay; LCD
-
·
field-selectable operation modes
-
· Universal
AC/DC supply voltage timers
available
-
·
Operations include ON-delay,
Repeat cycle, Signal
Interval/OFF-delay,
Signal-OFF delay (I and II), Interval, Cycle and Signal
ON-delay/OFF-delay
-
·

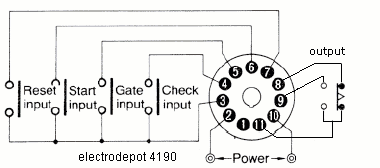

Selectable no-voltage start,
reset, gate and check inputs
expand capabilities
-
· Timer
remaining LCD bar graph and LCD
output status indicator
-
Panel mounting adapters,
sockets, and accessories may be
ordered separately
digital-set timer with 0.1 Sec. to 9990 hr
timing range.
|
Current, Ratings |
3 A @250 VAC SPDT (no
motor load) RoHS |
|
Display Type |
LCD |
|
Mounting Type |
Panel, Track⁄Surface 48 x 48 mm |
|
Temperature, Operating |
Maximum
55 °C ,
Minimum
-10 °C
|
|
Timing Function
|
On Delay, Off Delay 1, Off Delay 2,
Interval Delay, Cycle One-shot,
Repeat Cycle Equal On/Off Time,
Signal Interval/Off Delay, Signal On
Delay/Off Delay |
|
Voltage, Power Rating |
24VDC , 24,120,240VAC
1.5W |
|
Timer Type, Size |
Solid State IP54, 1/16 DIN 48
x 48 mm |
|
Timing Range |
0.1 Sec. to 9990 hrs |
|
Termination
1⁄16
DIN |
11-Pin Round Socket |
|
|
|
