NEMA4 Transmitter and Receiver Set
|
|
 |

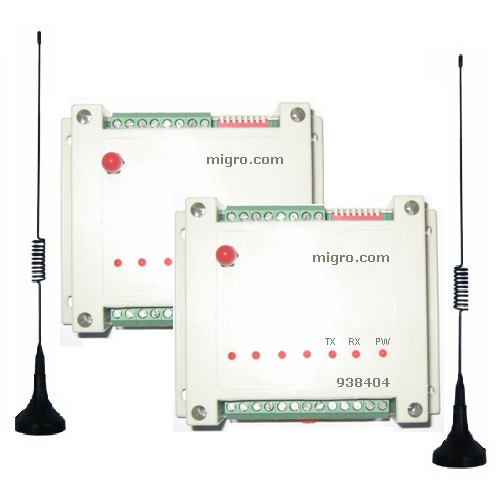

DIN Transmitter and Receiver Set
|
|
Two antennas are required |
938432
3 Element
Yagi Hi-Gain Antenna
|
Frequency |
420 - 450MHz |
|
Gain |
7 dBi |
|
Vertical Beam |
30
degrees, |
|
Horizontal
|
45 degrees |
|
Impedance |
50
Ohms N - terminal |
|
Max
Power |
150
Watts |
|
VSWR |
<
1.5:1 avg. |
|
Polarization |
Vertical |
|
Wind Data |
150
mph |
10 Feet of 50 ohm coaxial cable
|
|
938091
Omni Short Range
Antenna
|
Frequency |
430 - 440MHz |
|
Gain |
3 dBi |
|
Vertical Beam |
50
degrees, |
|
Horizontal
|
360 degrees |
|
Impedance |
50
Ohms |
|
Max
Power |
5
Watts |
|
VSWR |
<
1.5:1 avg. |
|
Polarization |
Vertical |
|
Wind Data |
80
mph |
5 Feet of 50 ohm coaxial cable
with connectors
and magnetic
mount
|
|
|
|
|
|
Two antennas are required |
938438 Omni
High Gain Antenna
| Frequency |
420 - 450MHz |
| Gain |
3 dBi |
| Vertical Beam |
45
degrees,
|
| Horizontal
|
360 degrees |
| Impedance |
50
Ohms N - terminal |
| Max
Power |
250
Watts |
| VSWR |
<
1.5:1 avg. |
| Polarization |
Vertical |
| Wind Data |
150
mph |
10 Feet of 50 ohm coaxial cable
|
|
933020
Miniature Contactor
20A, 3 Pole, 12VDC Coil
2HP
@240V, 7.5HP @460V
1HP @120V, 20Amp AC-1,
12Amp. AC-3
Screw Clamp Terminals,
600V, 1 N.O. Aux.,
DC Coil Current Inrush/Sealed 250mA
Dim: 1.7 x 2.5 x 2.3 in
(45 x 64 x 58 mm)
Wiring Examples
|
|
|
|
| |
|
931215 DIN 12VDC Switching Power Supply
output:
12VDC/1200mA
input:
82 - 240 VAC, 60 Hz
Operating Temperature: -10 to
70 Celsius
DC OK LED status indicator
DIN, rugged
plastic housing,
For DIN rail 32mm
UL Listed CSA, EC Certified
|
|
937112 Plug-in Power Adapter
output:
12VDC/2000mA
input:
115 - 240 VAC, 60 Hz
Output Voltage: 12 VDC
Regulated
Up to 2000mA
Thick, rugged plastic housing
UL Listed CSA Certified |
DISCLAIMER:
Contact a licensed professional for your
project. -
Warning:
Radio control equipment is not to be used in life safety
|
|
