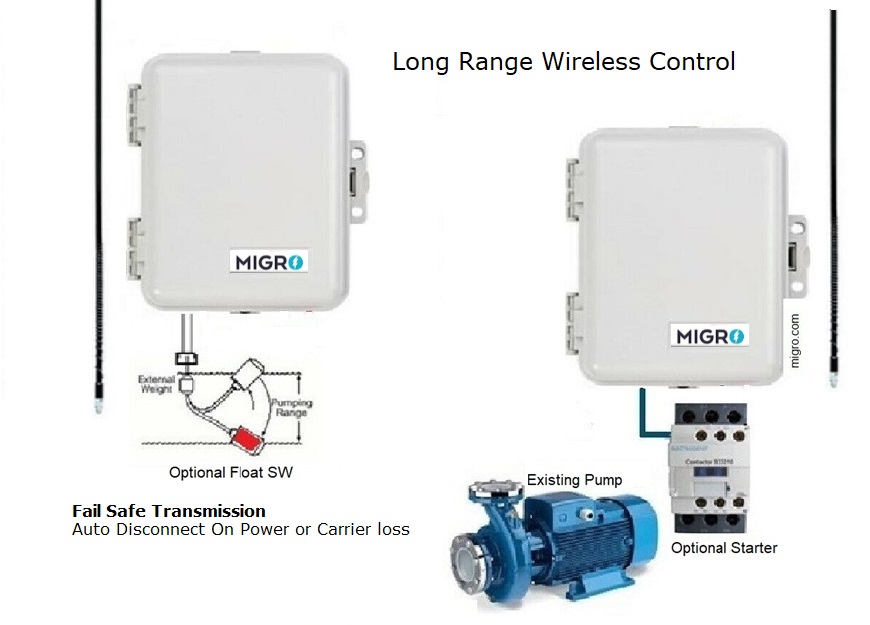

Industrial Radio Control

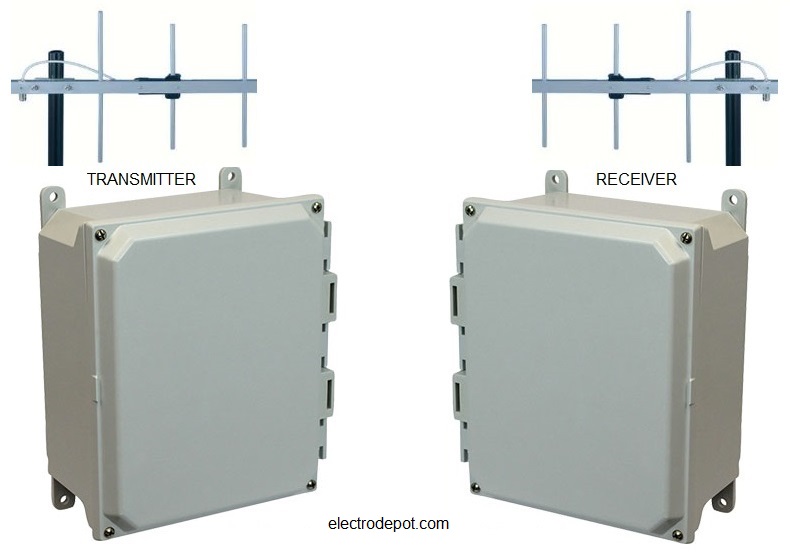

NEMA4 Transmitter and Receiver Set


Single (1) Channel
  935091
Two (2) Channel
  935092
Four (4) Channel
  935094
Specifications   Request information and price




 938432

  Two antennas are required

938432    3 Element
Yagi  Hi-Gain Antenna

Frequency 420 - 450MHz
Gain 7 dBi
Vertical Beam 30 degrees,
Horizontal 45 degrees
Impedance 50 Ohms N - terminal
Max Power 150 Watts
VSWR < 1.5:1 avg.
Polarization Vertical
Wind Data 150 mph

10 Feet of 50 ohm coaxial cable



 938432

938091  Omni Short Range Antenna

Frequency 430 - 440MHz
Gain 3 dBi
Vertical Beam 50 degrees,
Horizontal 360 degrees
Impedance 50 Ohms
Max Power 5 Watts
VSWR < 1.5:1 avg.
Polarization Vertical
Wind Data 80 mph

5 Feet of 50 ohm coaxial cable
 with connectors
and magnetic mount
