Industrial Radio Control
Performance
■ 2 Mile
(3.km) line-of-sight with
with 938432 or 938438 antenna
■ 1700. feet (500.m)
in-building range with 938432 antenna
■ Compact easy to install NEMA4 UL enclosure
■ Dry isolated contact input N/O
■ Relay output SPDT 10AMP @240V Pilot Duty
Class 2
Installation features
■ Operates in the license-free 433 MHz ISM band
■ Easy installation, No internet,
No programming
required
■ Panel or wall mount
Applications:
Industrial Monitoring, Pump control,
Monitor remote instruments, sensors and
detectors,
Packing and mobile system, SCADA installations,
Factory process, alarms, etc. |
 |
|
 |

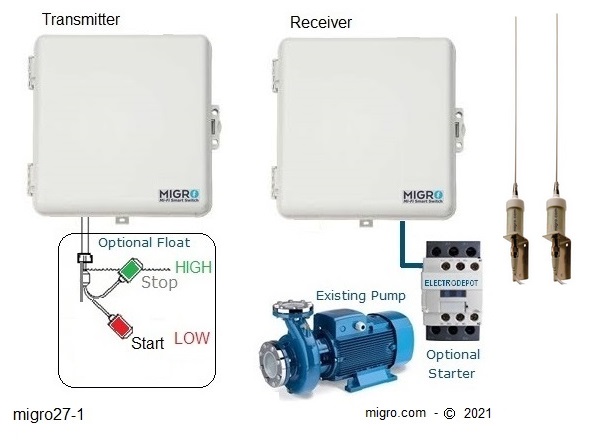

Transmitter and Receiver Set 12VDC
|
PERFORMANCE
2 Mile ( 3 km ) line of sight
w High-Gain antenna
1200
feet (300m) inside partially obstructed
Encoded 16 bits with 4,092 codes
Easy installation, No programming required
Panel mount or wall mount
•
Compliance:
433 MHz
license free industrial band part 95
FCC,
CFR part 15.247 ISM, PC board UL796
and UL94
|
SPECIFICATIONS
Transmitter
Input: Dry Contact
Receiver Output SPDT
relay 10 Amp @ 240VAC, 32 VDC, Class 2
Operation frequency:
433 MHz digital encoded, industrial band
Operating Temperature: -4° to +140° F (-20° to +60° C)
Dimensions 10.0 x
8.0 x 4.0
in. / 250 x
200 x 100 mm
Operation voltage: 12VDC
Power: per FCC Part 15.249, 50mV/m @ 3m
Power draw:
Standby 50mA, energized 400mA
|
|
Two antennas are required |
938432
3
Element
Beam Yagi
Antenna
|
Frequency |
420 - 450MHz |
|
Gain |
7 dBi |
|
Vertical Beam |
30
degrees, |
|
Horizontal
|
45 degrees |
|
Impedance |
50
Ohms N - terminal |
|
Max
Power |
150
Watts |
|
VSWR |
<
1.5:1 avg. |
|
Polarization |
Vertical |
|
Wind Data |
150
mph |
10 Feet of 50 ohm coaxial cable
|
Yagi Hi-Gain
Antenna
|
938455
5 Element Beam Yagi
Antenna
|
Frequency |
420 - 450MHz |
|
Gain |
9 dBi |
|
Vertical Beam |
27
degrees, |
|
Horizontal
|
36 degrees |
|
Impedance |
50
Ohms |
|
Max
Power |
150
Watts |
|
VSWR |
<
1.5:1 avg. |
|
Polarization |
Vertical |
|
Wind Data |
150
mph |
10 Feet of 50 ohm coaxial cable
|
|
|
|
|
|
Two antennas are required |
938438 Omni
High Gain Antenna
| Frequency |
420 - 450MHz |
| Gain |
3 dBi |
| Vertical Beam |
45
degrees,
|
| Horizontal
|
360 degrees |
| Impedance |
50
Ohms N - terminal |
| Max
Power |
250
Watts |
| VSWR |
<
1.5:1 avg. |
| Polarization |
Vertical |
| Wind Data |
150
mph |
10 Feet of 50 ohm coaxial cable
|
|
933020
Miniature Contactor
20A, 3 Pole, 12VDC Coil
2HP
@240V, 7.5HP @460V
1HP @120V, 20Amp AC-1,
12Amp. AC-3
Screw Clamp Terminals,
600V, 1 N.O. Aux.,
DC Coil Current Inrush/Sealed 250mA
Dim: 1.7 x 2.5 x 2.3 in
(45 x 64 x 58 mm)
Wiring Examples
|
|
|
|
| |
|
931215 DIN 12VDC
Switching Power Supply
output:
12VDC/1200mA
input:
82 - 240 VAC, 60 Hz
Operating Temperature: -10 to
70 Celsius
DC OK LED status indicator
DIN, rugged
plastic housing,
For DIN rail 32mm
UL Listed CSA, EC Certified
|
|
930650
Sealed Mechanical float switch.
SPDT
mechanical switch
10A contacts
rated for 1/4 hp
Float suitable
for sewage and high temperature
CPE-jacketed
12' (3.0m) cord
External cord
weight available
Specifications |
DISCLAIMER:
Contact a licensed professional for your
project. -
Warning:
Radio control equipment is not to be used in life safety
|
|
