  Contactor in Enclosure

  Lighting, motor control contactors


50 A. 3 Pole  N/O  933230


 Auxiliary contact  1NO/1NC
50A.  Incandescent or resistive load
32 A.  Motor and General purpose
AC1; 50A,
AC3; 32A Motor Load
Specifications   933200312010

110/120VAC coil  $37.99



40 A.  4 Pole  N/C  934004

Normally closed (N.C.) contacts
40 A.  Incandescent or resistive load
32 A.  Ballast and General purpose
Power Lug Terminal Capacity AWG # 4
Dimension: 2.2w x 3.3h x 2.5d inch
Power status  indicator

Specifications     add DIN Rail


120VAC Coil  $89.99


60A.  4 Pole  N/O 934060


 Normally Open (N.O.) contacts
63A.  Incandescent or resistive load
40 A.  Motor and General purpose
Power Lug Terminal Capacity AWG # 4
Dimension: 2.2w x 3.3h x 2.5d inch
Power status  indicator add DIN Rail

110/120VAC coil $67.99


60 Amp. 4 Pole
(Silent Operation)

Normally CLOSED (N.C.) contacts
For 120/220/277/Rated 400V,
10HP @240V, 20HP @460V
40A. Ballast, 12KW@ 220VAC
63Amp AC-1,  40Amp AC-3
Power Lug Terminal Capacity AWG # 4
Dimension: 2.2w x 3.3h x 2.5d inch
Auxiliary Contact  1 NC /1 NO  5Amp.
Coil 110/120VAC   add DIN Rail

934006A   $129.99


60 Amp. 4 Pole
(Silent Operation)


Normally Open (N.O.) contacts
For 120/220/277/Rated 400V,
10HP @240V, 20HP @460V
40A. Ballast, 12KW@ 220VAC
63Amp AC-1,  40Amp AC-3
Power Lug Terminal Capacity AWG # 4
Dimension: 2.2w x 3.3h x 2.5d inch
Auxiliary Contact  1 NC /1 NO  5Amp.
Coil 110/120VAC   add DIN Rail

 9340460A  $99.99




934320  3 Pole Timer

Lighting - Motor Control

7 Day, 24 Hour Timer
3 Pole Contactor 30A Motor,
40A, 50A Lighting, rated 600V
Normally Open (N.O.) contacts
For 120,208,240,277,480VAC
Control 120VAC, w DIN Rail

Manual

Timer 3P   $89.99





40 Amp.  4 Pole
944120

Normally Open (N.O.)
NEMA Definite purpose
Ballast, 7 KW@ 220VAC
50A AC-1, 40A. AC-3  600V
Dim: 2.75 x 3.5 x 3.0 in
(70 x 90 x 75 mm)
Power Lug Terminal Capacity AWG # 4
SPECIFICATIONS

  120VAC  Coil

  944121    $47.99

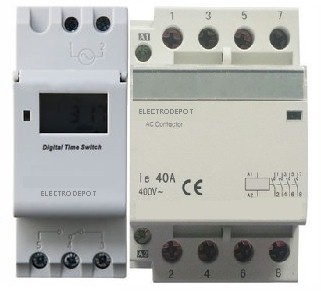

934420 4 Pole Timer

Lighting - Motor Control
7 Day, 24 Hour Timer
4 Pole Silent Contactor  40A
Normally Open (N.O.) contacts
For 120,208,240,277,480VAC
Control 120VAC, w DIN Rail
Manual

Timer 4P   $99.99



40 Amp.    3 Pole
943120


Normally Open (N.O.)
NEMA Definitive purpose
10HP @240V, 15KW 277VAC
40 A. Ballast, 7 KW@ 220VAC
50A AC-1, 40A. AC-3  600V
Lighting - Refrigeration - HVAC

Dim: 2.75 x 3.5 x 3.0 in
(70 x 90 x 75 mm)
Power Lug Terminal Capacity AWG # 4

120VAC coil

943120   $32.99




60 Amp.  4 Pole (Silent Operation)


Normally Open (N.O.) contacts
For 120/220/277/Rated 400V,
10HP @240V, 20HP @460V
40A. Ballast, 12KW@ 220VAC
63Amp AC-1,  40Amp AC-3
Power Lug Terminal Capacity AWG # 4
Dimension: 2.2w x 3.3h x 2.5d inch
Auxiliary Contact  1 NC /1 NO  5Amp.
Coil 110/120VAC   add DIN Rail

934060A    $99.99


100 Amp. 4 Pole  Slim contactor


Normally Open (N.O.) contacts
For 120/220/277/Rated 500V,
50A. Ballast, 10 KW@ 220VAC, 15KW@277V
100A  AC-1,  40A. AC-3
40A, 24VDC, DC Switching
Power status  indicator, DIN mount

Dim: 110 x 81 x 68 mm)   Dimension
Power Lug Terminal Capacity AWG # 2/0
120VAC coil

934100   $189.99

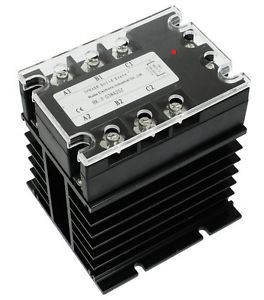

Silent Contactor

40 Amp 3 Pole, 480 VAC
Normally Open (N.O.) contacts

Solid state contactor w heat sink.

COIL:  120/240VAC

  963120 - $129.99

.
Power Calculator  Practical Formulas
